Wautopilot API

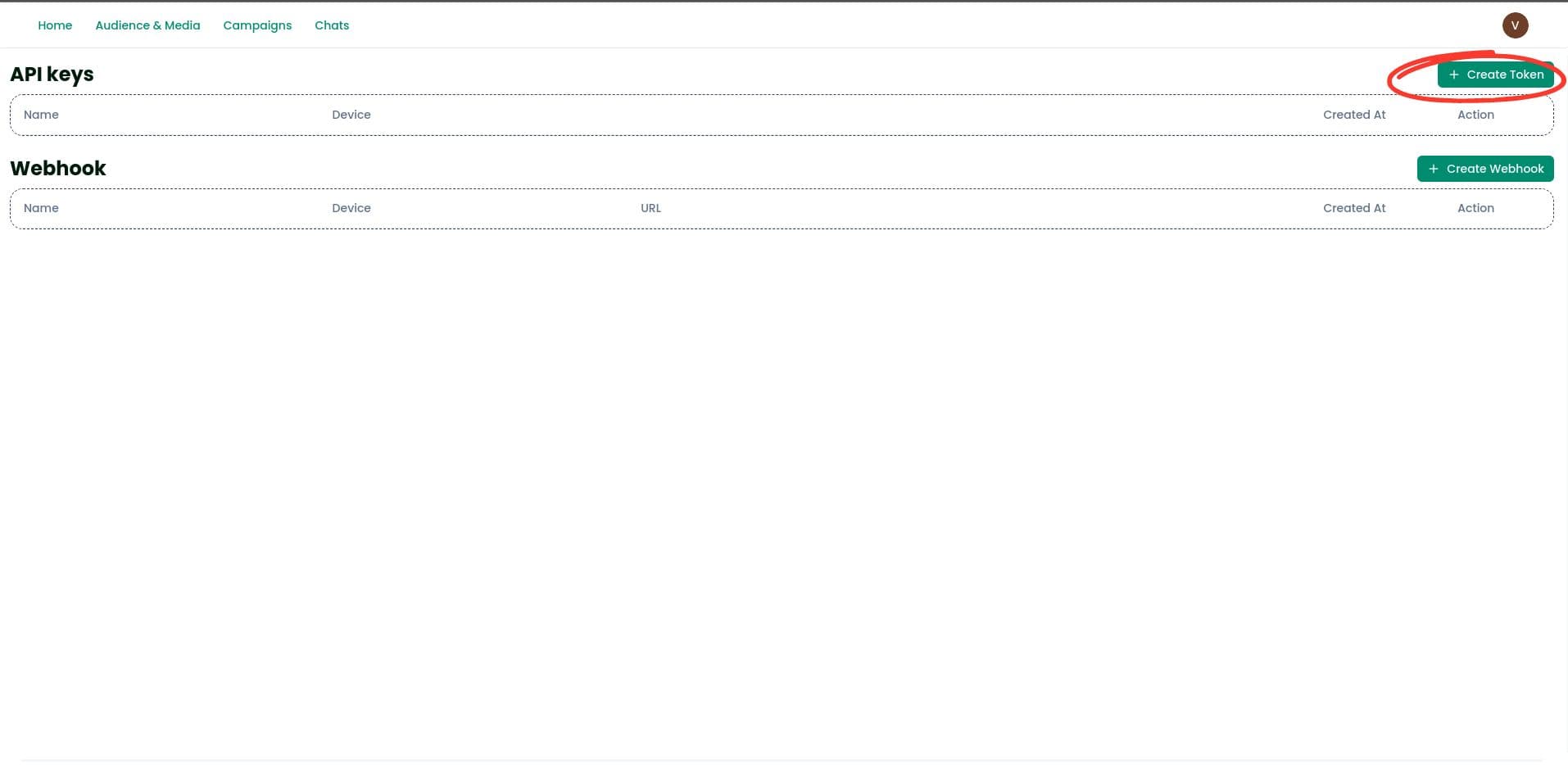

1. After logging in go to https://wautopilot.com/panel/home/api-webhook
2. Generate an API key for your WhatsApp Business API.

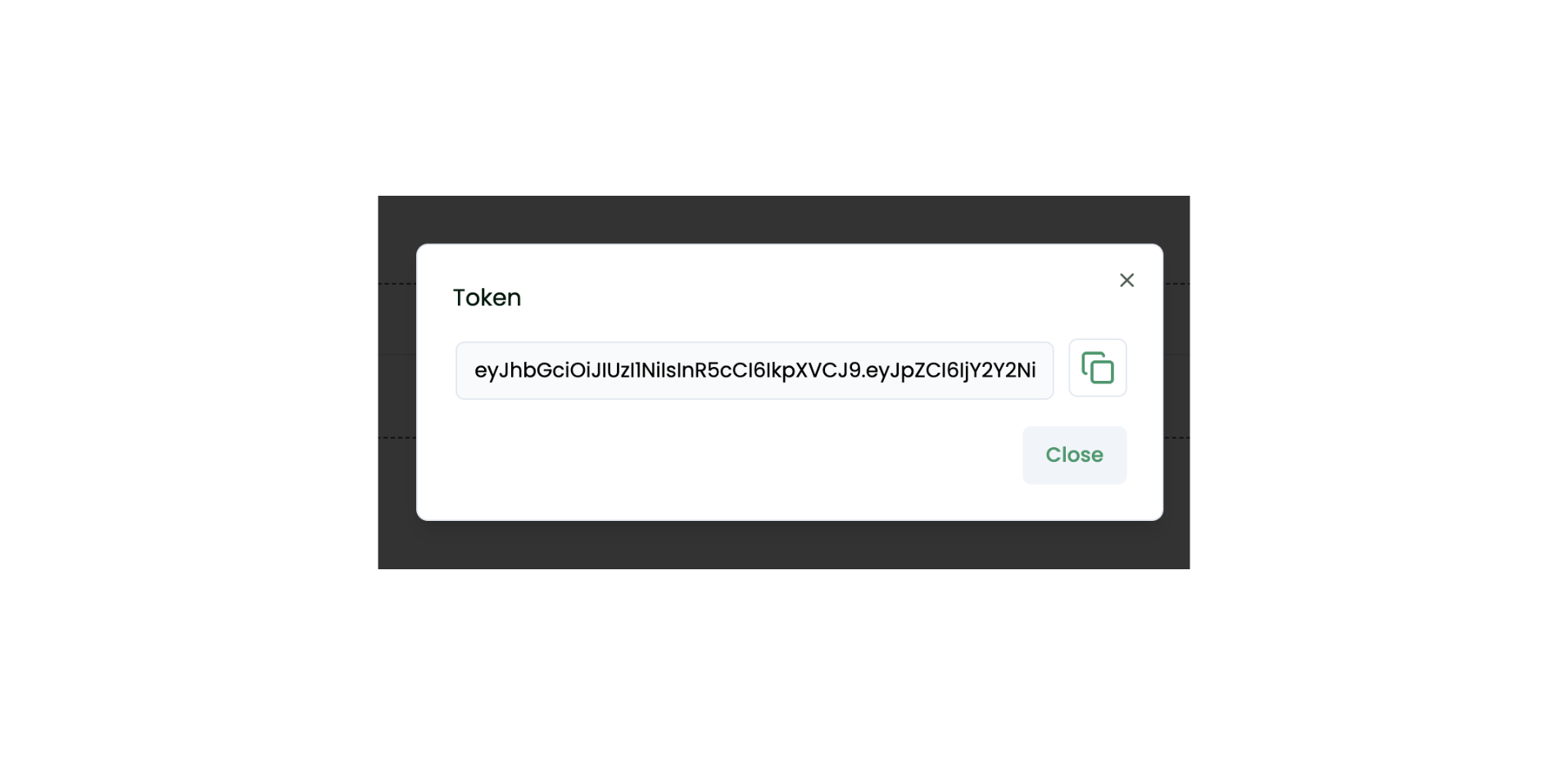

3. Enter your name and select WhatsApp number..
4. This token will be used for authentication.
*You will not be able to view this token after the dialog is closed and thus it must be regenerated.
Send Message
Text Message
Sends a service text message
Request Example
curl --location 'https://api.wautopilot.com/v1/message/send-message'
--header 'Authorization: Bearer <YOUR_API_KEY>'
--header 'Content-Type: application/json'
--data '{
"message":{
"type":"text",
"text":"Hello There"
},
"recipient":"91XXXXXXXXXX"
}'Arguments:
type: string (required)
text: string (required)
Message you want to send.
recipient: string (required)
Recipient number with country code (without ‘+‘).
Request body example
{
"message":{
"type":"text",
"text":"Hello There"
},
"recipient":"91XXXXXXXXXX"
}Media Message
Sends a media (image, video, audio, document).
Request Example
curl --location 'https://api.wautopilot.com/v1/message/send-message'
--header 'Authorization: Bearer <YOUR_API_KEY>'
--header 'Content-Type: application/json'
--data '{
"message":{
"type":"image",
"media_id":"729961535887623"
},
"recipient":"91XXXXXXXXXX"
}'Request Example
curl --location 'https://api.wautopilot.com/v1/message/send-message'
--header 'Content-Type: application/json'
--header 'Authorization: Bearer <YOUR_API_KEY>'
--data '{
"message":{
"type": "image",
"media_link": "https://________"
},
"recipient" : "91XXXXXXXXXX"
}''Arguments
type: string (required)
media_id: string (required)
Media id of the media you want to send.
media_link: string (required)
URL of media. (any downloadable URL)
recipient: string (required)
Recipient number with country code (without ‘+‘).
Request body example (with media id)
{
"message":{
"type":"image", //(image, video, document, audio)
"media_id":"729961535887623"
},
"recipient":"91XXXXXXXXXX"
}Request body example (with url)
{
"message":{
"type":"image", //(image, video, document, audio)
"media_link":"https://media.istockphoto.com/id/1500285927/photo/young-woman-a-university-student-studying-online.jpg?s=2048x2048&w=is&k=20&c=95BgS0lojrWD3QEmbec0nJv2DOHvUO4G6QoXF80S_9Y="
},
"recipient":"91XXXXXXXXXX"
}Location Message
Sends a location message
Request Example
curl --location 'https://api.wautopilot.com/v1/message/send-message'
--header 'Authorization: Bearer <YOUR_API_KEY>'
--header 'Content-Type: application/json'
--data '{
"message": {
"type": "location",
"location": {
"name": "Central Park",
"latitude": "40.785091",
"longitude": "-73.968285",
"address": "New York, NY 10024, USA"
}
},
"recipient": "91XXXXXXXXXX"
}'Arguments
type: string (required)
name: string (required)
Name of the place.
latitude: string (required)
Latitude of the place.
longitude: string (required)
Longitude of the place.
address: string (required)
Full address of the place.
recipient: string (required)
Recipient number with country code (without ‘+‘).
Request body example
{
"message": {
"type": "location",
"location": {
"name": "Central Park",
"latitude": "40.785091",
"longitude": "-73.968285",
"address": "New York, NY 10024, USA"
}
},
"recipient": "91XXXXXXXXXX"
}VCard Message
Sends a contact VCard
Request Example
curl --location 'https://api.wautopilot.com/v1/message/send-message'
--header 'Authorization: Bearer <YOUR_API_KEY>'
--header 'Content-Type: application/json'
--data-raw '{
"message": {
"type": "contacts",
"contacts": [{
"name": {"formatted_name": "Dr. John A. Doe Jr.","first_name": "John","last_name": "Doe","middle_name": "Alexander","suffix": "Jr.","prefix": "Dr."},"addresses": [{"street": "1234 Elm Street","city": "Springfield","state": "IL","zip": "62704","country": "USA","country_code": "US","type": "HOME"},{"street": "5678 Oak Avenue","city": "Chicago","state": "IL","zip": "60605","country": "USA","country_code": "US","type": "WORK"}],"birthday": "1985-05-15","emails": [{"email": "john.doe@workemail.com","type": "WORK"},{"email": "john.doe@homeemail.com","type": "HOME"}],"org": {"company": "Doe Industries","department": "Engineering","title": "Senior Engineer"},"phones": [{"phone": "+11234567890","wa_id": "1234567890","type": "WORK"},{"phone": "+10987654321","wa_id": "0987654321","type": "HOME"}],"urls": [{"url": "http://www.doeindustries.com","type": "WORK"},{"url": "http://www.johndoeblog.com","type": "HOME"}]}]},
"recipient": "91XXXXXXXXXX"
}'Arguments
type: string (required)
formatted_name: string (required)
first_name: string (required)
last_name: string (optional)
middle_name: string (optional)
suffix: string (optional)
prefix: string (optional)
addresses: array (optional)
street: string (optional)
city: string (optional)
state: string (optional)
zip: string (optional)
country: string (optional)
country_code: string (optional)
type: string (optional)
birthday: string (optional)
emails: array (optional)
email: string (optional)
type: string (optional)
org: object (optional)
company: string (optional)
department: string (optional)
title: string (optional)
phones: array (optional)
phone: string (optional)
wa_id: string (optional)
type: string (optional)
urls: array (optional)
url: string (optional)
type: string (optional)
recipient: string (required)
Recipient number with country code (without ‘+‘).
Request body example
{
"message": {
"type": "contacts",
"contacts": [
{
"name": {
"formatted_name": "Dr. John A. Doe Jr.",
"first_name": "John",
"last_name": "Doe",
"middle_name": "Alexander",
"suffix": "Jr.",
"prefix": "Dr."
},
"addresses": [
{
"street": "1234 Elm Street",
"city": "Springfield",
"state": "IL",
"zip": "62704",
"country": "USA",
"country_code": "US",
"type": "HOME"
},
{
"street": "5678 Oak Avenue",
"city": "Chicago",
"state": "IL",
"zip": "60605",
"country": "USA",
"country_code": "US",
"type": "WORK"
}
],
"birthday": "1985-05-15",
"emails": [
{
"email": "john.doe@workemail.com",
"type": "WORK"
},
{
"email": "john.doe@homeemail.com",
"type": "HOME"
}
],
"org": {
"company": "Doe Industries",
"department": "Engineering",
"title": "Senior Engineer"
},
"phones": [
{
"phone": "+11234567890",
"wa_id": "1234567890",
"type": "WORK"
},
{
"phone": "+10987654321",
"wa_id": "0987654321",
"type": "HOME"
}
],
"urls": [
{
"url": "http://www.doeindustries.com",
"type": "WORK"
},
{
"url": "http://www.johndoeblog.com",
"type": "HOME"
}
]
}
]
},
"recipient": "91XXXXXXXXXX"
}Button Message
Sends message with buttons
Request Example
curl --location 'https://api.wautopilot.com/v1/message/send-message' --header 'Authorization: Bearer <YOUR_API_KEY>' --header 'Content-Type: application/json' --data '{
"message": {
"type": "button",
"text": "Choose an option:",
"buttons": [{"id": "optionone", "text": "Option 1"},{"id": "optiontwo", "text": "Option 2"},{"id": "optionthree", "text": "Option 3"}
},
"recipient": "91XXXXXXXXXX"
}'Arguments
type: string (required)
buttons: array (required)
id: string (required) (should be lower case alphanumeric)
text: string (required)
text: string (required)
recipient: string (required)
Recipient number with country code (without ‘+‘).
Request body example
{
"message": {
"type": "button",
"text": "Choose an option:",
"buttons": [
{
"id": "optionone", // id must be lowercase alphanumeric
"text": "Option 1"
},
{
"id": "optiontwo", // id must be lowercase alphanumeric
"text": "Option 2"
},
{
"id": "optionthree", // id must be lowercase alphanumeric
"text": "Option 3"
}
]
},
"recipient": "91XXXXXXXXXX"
}List Message
Sends list message.
Request Example
curl --location 'https://api.wautopilot.com/v1/message/send-message' --header 'Authorization: Bearer <YOUR_API_KEY>' --header 'Content-Type: application/json' --data '{
"message": {
"type": "list",
"header": "Available Services",
"body": "Please choose a service from the list below.",
"footer": "Swipe up for more options.",
"button_text": "Select Service",
"sections": [
{"title": "Financial Services","buttons": [{"id": "serviceone", "text": "Wealth Management"},{"id": "servicetwo", "text": "Tax Planning"}]},{"title": "Technical Support","buttons": [{"id": "servicethree", "text": "Software Installation"},{"id": "servicefour", "text": "Network Setup"}]},{"title": "Customer Care","buttons": [{"id": "servicefive", "text": "Account Issues"},{"id": "servicesix", "text": "Billing Inquiries"}]}
]
},
"recipient": "91XXXXXXXXXX"
}'Arguments
type: string (required)
header: string (optional)
body: string (required)
footer: string (optional)
button_text: string (required)
sections: array (required)
title: string (required)
buttons: array (required)
id: string (required)
text: string (required)
recipient: string (required)
Recipient number with country code (without ‘+‘).
Request body example
{
"message": {
"type": "list",
"header": "Available Services",
"body": "Please choose a service from the list below.",
"footer": "Swipe up for more options.",
"button_text": "Select Service",
"sections": [
{
"title": "Financial Services",
"buttons": [
{
"id": "serviceone", // Button ID must be lowercase alphabets only.
"text": "Wealth Management"
},
{
"id": "servicetwo", // Button ID must be lowercase alphabets only.
"text": "Tax Planning"
}
]
},
{
"title": "Technical Support",
"buttons": [
{
"id": "servicethree", // Button ID must be lowercase alphabets only.
"text": "Software Installation"
},
{
"id": "servicefour", // Button ID must be lowercase alphabets only.
"text": "Network Setup"
}
]
},
{
"title": "Customer Care",
"buttons": [
{
"id": "servicefive", // Button ID must be lowercase alphabets only.
"text": "Account Issues"
},
{
"id": "servicesix", // Button ID must be lowercase alphabets only.
"text": "Billing Inquiries"
}
]
}
]
},
"recipient": "91XXXXXXXXXX"
}Whatsapp Flow Message
Sends flow Message
Request Example
curl --location 'https://api.wautopilot.com/v1/message/send-message' --header 'Authorization: Bearer <YOUR_API_KEY>' --header 'Content-Type: application/json' --data '{
"message": {
"type": "whatsapp_flow",
"header": "Welcome to Our Service",
"body": "We are here to assist you. Please start the flow below to continue.",
"footer": "Thank you for choosing us.",
"flow_id": "1140273103940962",
"button_text": "Start Now"
},
"recipient": "91XXXXXXXXXX"
}'Arguments
type: string (required)
header: string (optional)
body: string (required)
footer: string (optional)
flow_id: string (required)
Flow id of the flow you want to send.
button_text: string (required)
recipient: string (required)
Recipient number with country code (without ‘+‘).
Request body example
{
"message": {
"type": "whatsapp_flow",
"header": "Welcome to Our Service", // optional
"body": "We are here to assist you. Please start the flow below to continue.",
"footer": "Thank you for choosing us.", //optional
"flow_id": "1140273103940962",
"button_text": "Start Now"
},
"recipient": "91XXXXXXXXXX"
}Template Message (with custom message)
Sends a template Message
Request Example
curl --location 'https://api.wautopilot.com/v1/message/send-message' --header 'Authorization: Bearer <YOUR_API_KEY>' --header 'Content-Type: application/json' --data '{
"message": {
"type": "template",
"template_id": "703008418565758",
"template_name": "bni_first_message",
"template_header": {"type": "IMAGE","media_id": "881697986671853"},
"template_body": [
{
"custom_text": "User",
"phonebook_data": "",
"variable_from": "custom_text",
"fallback_value": ""
},
{
"custom_text": "2",
"phonebook_data": "",
"variable_from": "custom_text",
"fallback_value": ""
}
]
},
"recipient": "91XXXXXXXXXX"
}'Arguments
type: string (required)
template_id: string (required)
template_name: string (required)
template_header.type: string (required)
media_id: string (required when 'type' is 'IMAGE' 'VIDEO' 'AUDIO' 'DOCUMENT')
or
media_link: string (required when 'type' is 'IMAGE' 'VIDEO' 'AUDIO' 'DOCUMENT')
NOTE: Any one of media_id or media_link is required
text: string (required when 'type' is 'TEXT')
template_body: array (required)
variable_from: string(required)
Variable from which the value will be fetched.
custom_text: string (required when 'variable_from' is 'custom_text')
phonebook_data: string (required when 'variable_from' is 'phonebook_data')
fallback_data: string (required when 'variable_from' is 'phonebook_data')
recipient: string (required)
Recipient number with country code (without ‘+‘).
Request body example
{
"message": {
"type": "template",
"template_id": "703008418565758",
"template_name": "bni_first_message",
"template_header": {
"type": "IMAGE",
"media_id": "881697986671853"
},
"template_body": [
{
"custom_text": "User",
"phonebook_data": "",
"variable_from": "custom_text",
"fallback_value": ""
},
{
"custom_text": "2",
"phonebook_data": "",
"variable_from": "custom_text",
"fallback_value": ""
}
]
},
"recipient": "91XXXXXXXXXX"
}Template Message (with phonebook data)
Sends a template Message
Request Example
curl --location 'https://api.wautopilot.com/v1/message/send-message' --header 'Authorization: Bearer <YOUR_API_KEY>' --header 'Content-Type: application/json' --data '{
"message": {
"type": "template",
"template_id": "703008418565758",
"template_name": "bni_first_message",
"template_header": {"type": "IMAGE","media_id": "881697986671853"},
"template_body": [
{
"custom_text": "",
"phonebook_data": "first_name",
"variable_from": "phonebook_data",
"fallback_value": "User"
},
{
"custom_text": "",
"phonebook_data": "middle_name",
"variable_from": "phonebook_data",
"fallback_value": "dear"
}
]
},
"recipient": "91XXXXXXXXXX"
}'Arguments
type: string (required)
template_id: string (required)
template_name: string (required)
template_header.type: string (required)
media_id: string (required when 'type' is 'IMAGE' 'VIDEO' 'AUDIO' 'DOCUMENT')
or
media_link: string (required when 'type' is 'IMAGE' 'VIDEO' 'AUDIO' 'DOCUMENT')
NOTE: Any one of media_id or media_link is required
text: string (required when 'type' is 'TEXT')
template_body: array (required)
variable_from: string(required)
Variable from which the value will be fetched.
custom_text: string (required when 'variable_from' is 'custom_text')
phonebook_data: string (required when 'variable_from' is 'phonebook_data')
fallback_data: string (required when 'variable_from' is 'phonebook_data')
recipient: string (required)
Recipient number with country code (without ‘+‘).
Request body example
{
"message": {
"type": "template",
"template_id": "703008418565758",
"template_name": "bni_first_message",
"template_header": {
"type": "IMAGE",
"media_id": "881697986671853"
},
"template_body": [
{
"custom_text": "",
"phonebook_data": "first_name",
"variable_from": "phonebook_data",
"fallback_value": "User"
},
{
"custom_text": "",
"phonebook_data": "middle_name",
"variable_from": "phonebook_data",
"fallback_value": "dear"
}
]
},
"recipient": "91XXXXXXXXXX"
}Media
List Media
Lists of media
Request Example
curl --location 'https://api.wautopilot.com/v1/media' --header 'Authorization: Bearer <YOUR_API_KEY>' }'Arguments:
No args required.
Request body example
{
"list": [
{
"id": "1064042408267933",
"filename": "DP-8049E",
"file_length": 922113,
"mime_type": "image/jpeg"
},
],
"success": true
}Download Media
Download media by media id
Request Example
curl --location 'https://api.wautopilot.com/v1/media/<MEDIA_ID>/download' --header 'Authorization: Bearer <YOUR_API_KEY>' }'Arguments:
<MEDIA_ID>: string (required)
Template
List templates
Lists of all template registered to meta.
Request Example
curl --location 'https://api.wautopilot.com/v1/templates' --header 'Authorization: Bearer <YOUR_API_KEY>' }'Arguments:
No args required.
Response body example
{
"templates": [
{
"id": "3837455136535795",
"name": "product_catalog",
"status": "APPROVED",
"category": "MARKETING"
},
],
"success": true
}Template Details
Details of the template.
Request Example
curl --location 'https://api.wautopilot.com/v1/templates/<TEMPLATE_ID>' --header 'Authorization: Bearer <YOUR_API_KEY>' }'Arguments:
<TEMPLATE_ID>: string (required)
Response body example
{
"template": {
"id": "<TEMPLATE_ID>",
"name": "mar_bni_pincode_message",
"category": "MARKETING",
"allow_category_change": true,
"language": "en_US",
"components": [
{
"type": "BODY",
"text": "Good Morning {{1}} ,
While going through my leads a few days ago, I saw your office is in {{2}} .
I visit {{2}} regularly, and would like to do 1-2-1 when I visit next time .
Please share your *Google Location of your Business* .",
"example": {
"body_text": [
[
"Name",
"Colony"
]
]
}
},
{
"type": "BUTTONS",
"buttons": [
{
"type": "QUICK_REPLY",
"text": "Let's Connect"
},
{
"type": "QUICK_REPLY",
"text": "I will connect later"
}
]
}
]
},
"success": true
}Whatsapp Flows / Forms
List FLows
Lists all the flows registered to meta.
Request Example
curl --location 'https://api.wautopilot.com/v1/flows' --header 'Authorization: Bearer <YOUR_API_KEY>' }'Arguments:
No args required.
Response body example
{
"flows": [
{
"id": "505642542401463",
"name": "Digital Marketing Expertise Survey",
"status": "PUBLISHED",
"categories": [
"LEAD_GENERATION"
]
}
],
"success": true
}Whatsapp Flow Details
Details of the flow.
Request Example
curl --location 'https://api.wautopilot.com/v1/flows/<FLOW_ID>' --header 'Authorization: Bearer <YOUR_API_KEY>' }'Arguments:
<FLOW_ID>: string (required)
Response body example
{
"screens": [
{
"id": "kindly_share_your_expertise_in_digital_marketing",
"title": "Kindly share your expertise in Digital Marketing",
"children": [
{
"type": "CheckboxGroup",
"name": "multiple_choice",
"label": "Expert Area",
"required": false,
"data-source": [
"Social Media Marketing",
"Search Engine Marketing",
"SEO",
"Meta Whatsapp Business API"
]
},
{
"type": "TextArea",
"name": "textarea",
"label": "Industries you cater",
"required": false,
"helper-text": "Kindly specify industries you specialize in generating leads for."
},
{
"type": "Footer",
"label": "Submit",
"on-click-action": {
"name": "complete",
"payload": {
"multiple_choice": "{form.multiple_choice}",
"textarea": "{form.textarea}"
}
}
}
]
}
],
"success": true
}
